NCM M7

Price
$2,499
Color:Black
Size:27.5"
Pre-sales! Will start to ship from Mar.22nd, 2023.
An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their ebike can handle whatever they throw at it.
Shipping Information

Product Specifications

BIKE COMPONENTS

Frame: Alu. 6061, 27.5"*18.9 inches

Suspension Fork: Suntour, XCM-HLO-27.5, with hydraulic lock system

Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100,F: 180mm rotor R: 180mm rotor

Freewheel: LY, 8 Speed, 11-32T, Silver

Tire: Schwalbe, Smart Sam, 27.5"*2.35, Black

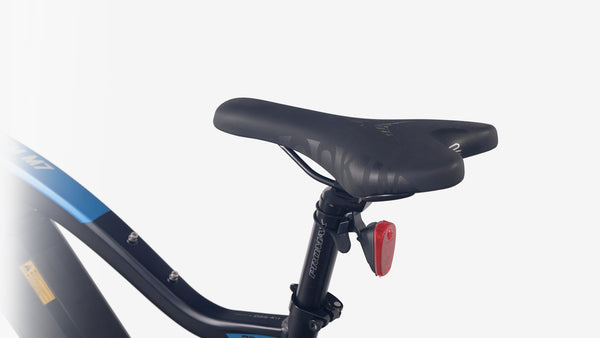

Saddle: Selle Royal, Lookin-A200UR, Black

Stem: Promax, Alu.MA-471

Crank: Das-Kit, 52T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4820, 48V 20AH, 960WH

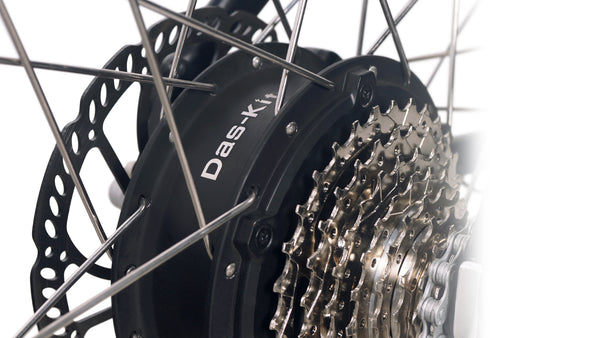

Motor: Das-Kit, X16, Rear drive motor, 48V 500W, 32KM/H

Controller: Das-Kit, T7+, 48V 22A

Charger: Das Kit, 48V 3A

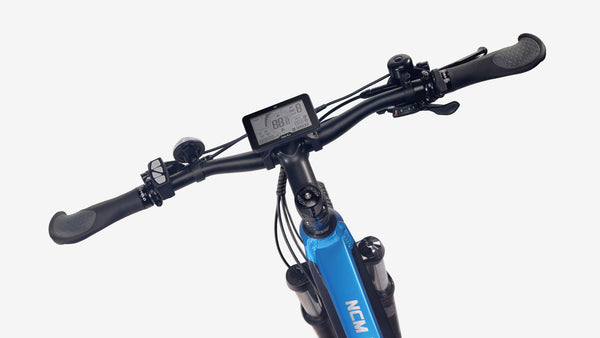

Display: Das-Kit, C8,with USB

Front Light: DH007Plus, 48V, 70Lux

WEIGHT

NCM M7 27.5":

Weight (without battery): 23KG (50.7lbs)

Battery Weight: 4.8KG (10.6lbs)

Max Load (rider+bike): 125KG (275.6 lbs)
