NCM T7s
NCM T7s
NCM T7s
NCM T7s
Click image to open expanded view

NCM T7s

Price
$2,499
Color:Violet
Size:26" - S
Pre-sales! Will start to ship from Mar.22nd, 2023.

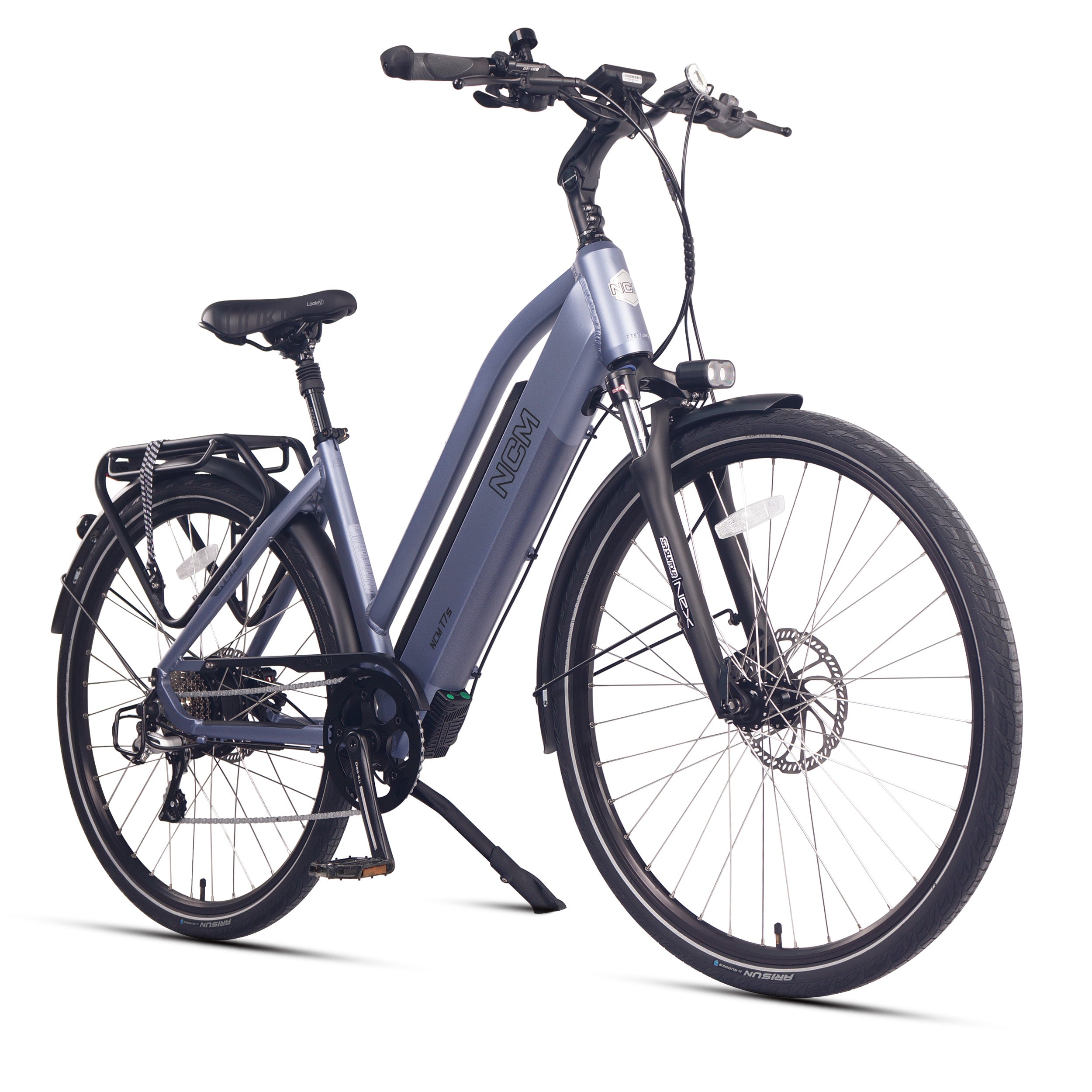

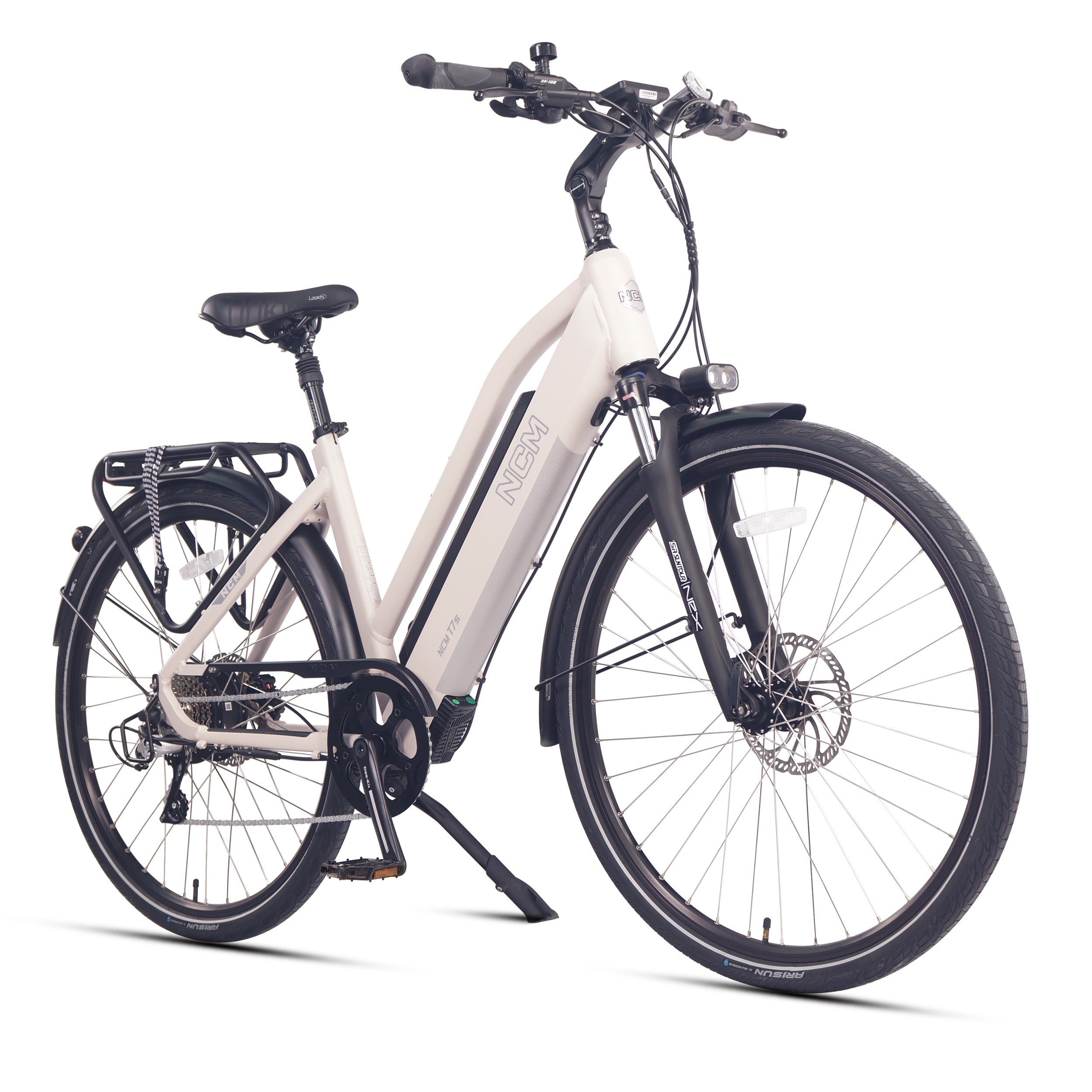

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it.
Shipping Information

Product Specifications

BIKE COMPONENTS

Frame: Alu. 6061, 26"*15.0 inches/26"*16.9 inches

Suspension Fork: Suntour, NEX-HLO 26, with hydraulic lock system

Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor

Freewheel: LY, 8 Speed, 11-32T, Silver

Tire: Arisun, H-5213E, 26*2.15, Black

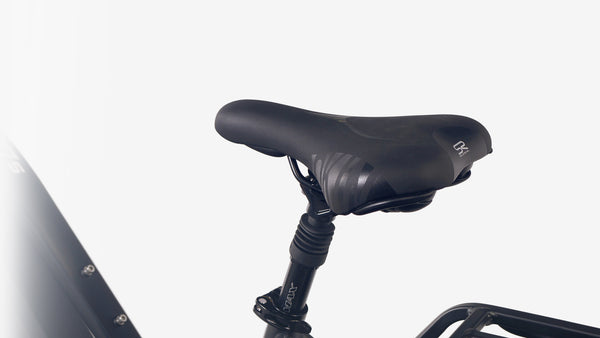

Saddle: Selle Royal, Lookin- Black

Stem: Promax, MA-579

Crank: Das-Kit, 52T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4820, 48V20AH, 960WH

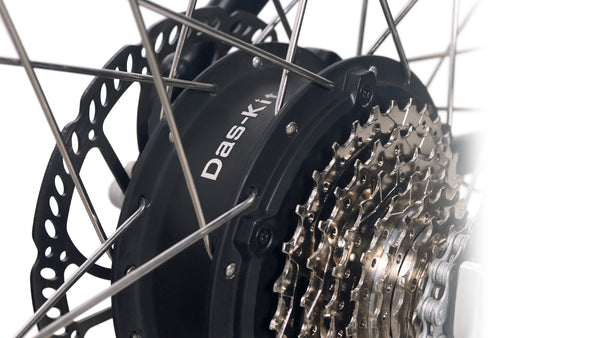

Motor: Das-Kit, X16, Rear drive motor, 48V 500W, 32KM/H

Controller: Das-Kit, T7+, 48V 22A

Charger: Das Kit, 48V 3A

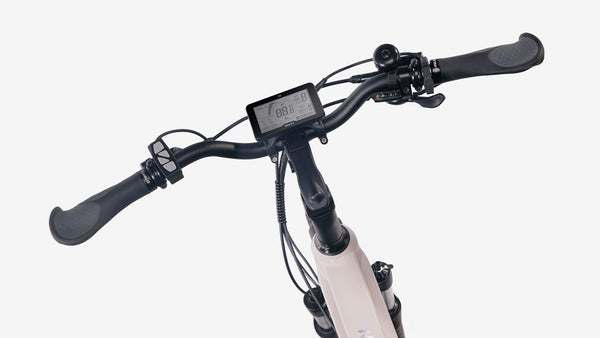

Display: Das-Kit, C8, with USB

Front Light: DH007Plus, 48V, 70Lux

WEIGHT

NCM T7s 26" - S:

Weight (without battery): 24.7KG (54.4lbs)

Battery Weight: 4.8KG (10.6lbs)

Max Load (rider+bike): 140KG (308.6lbs)

NCM T7s 26" - M:

Weight (without battery): 24.8KG (54.7lbs)

Battery Weight: 4.8KG (10.6lbs)

Max Load (rider+bike): 140KG (308.6lbs)
